Stark Model

The stark model is a general implementation for the impact of an electric field applied to any other Model.

All other Model classes have an implemented apply_electric_field() method. This model uses this method to calculate a new absorption spectrum from the effects of an electric field on the submodel’s absorption spectrum.

More details on the implementation of the Stark effect can be found in the Stark Computation Docs.

This model requires a submodel to be passed in as an argument. The submodel is the model that will be used to calculate the absorption spectrum.

Model Name

In config files, this Model is named stark. This can be specified in your-config.toml with:

model.name = "stark"

In this package, this Model is named StarkModel. This can be imported with:

from quantumspectra_2024.absorption.stark import StarkModel

Parameters

All Models have a mixture of required and optional parameters. For further explanation and expected values, see the Stark Computation Docs.

Model Parameters

Note

All Stark Models require these parameters on initialization.

An initialized neutral submodel used to calculate the absorption spectrum:

StarkModel.neutral_submodel: AbsorptionModel

parameterized neutral submodel to use in Stark effect calculation.

Warning

The submodel must be initialized before the StarkModel. The submodel should represent neutral conditions.

These scalar paramters describe the effect of the electric field:

StarkModel.positive_field_strength: float

positive strength of the electric field.

StarkModel.positive_field_sum_percent: float = 0.5

fraction of positive field strength to use in spectrum (decimal).

These scalar parameters describe the nature of the electric field:

StarkModel.field_delta_dipole: float

change in dipole moment due to electric field.

StarkModel.field_delta_polarizability: float

change in polarizability due to electric field.

General Parameters

All Models have optional parameters to specify the range of their generated spectrum. By default, all Models generate 2,001 points between 0 and 20,000 wavenumbers. This takes priority over the submodel’s default range.

StarkModel.start_energy: float = 0.0

absorption spectrum’s starting energy (wavenumbers).

StarkModel.end_energy: float = 20000.0

absorption spectrum’s ending energy (wavenumbers).

StarkModel.num_points: int = 2001

absorption spectrum’s number of points (unitless).

Examples

These examples display both types of usage for this class. Both use the same “default” parameters that appear in the given sample config.

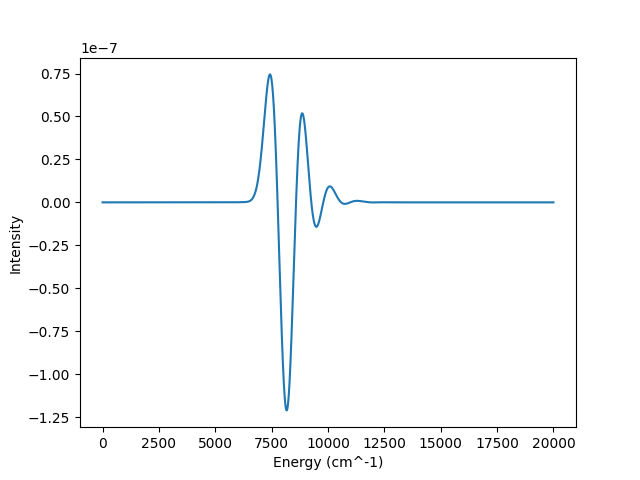

Both of these methods will produce the following absorption spectrum:

CLI Usage

First, create a config file your-config.toml that includes the required specifications, and these contents:

model.name = "stark"

model.positive_field_strength = 0.01
model.positive_field_sum_percent = 0.5

model.field_delta_dipole = 38
model.field_delta_polarizability = 1000

Because the Stark Model requires a submodel, also include the submodel’s config:

model.neutral_submodel.name = "two_state"

model.neutral_submodel.temperature_kelvin = 300
model.neutral_submodel.broadening = 200

model.neutral_submodel.transfer_integral = 100
model.neutral_submodel.energy_gap = 8000

model.neutral_submodel.mode_basis_sets = [20, 200]
model.neutral_submodel.mode_frequencies = [1200, 100]
model.neutral_submodel.mode_couplings = [0.7, 2.0]

More information about config files can be found on the Config Files page. Sample config files can be found in the Sample Configs section of that page.

Then, run the absorption spectrum command with the path to your config file.
qs_2024 path/to/your-config.toml
This will save the generated absorption spectrum to the specified output file.

Package Usage

First, import the Model, and the desired submodel.

from quantumspectra_2024.models import StarkModel
from quantumspectra_2024.models import TwoStateModel # or any other submodel

Create an instance of the submodel with the desired parameters.

Warning

Because the submodel is used as a parameter in the Stark model, this must be initialized first.

submodel = TwoStateModel(
    temperature_kelvin=300,
    broadening=200,
    transfer_integral=100,
    energy_gap=8000,
    mode_basis_sets=[20, 200],
    mode_frequencies=[1200, 100],
    mode_couplings=[0.7, 2.0]
) # or any other submodel

Create an instance of the Stark model with the desired parameters.

model = StarkModel(
    neutral_submodel = submodel,
    positive_field_strength = 0.01,
    positive_field_sum_percent = 0.5,
    field_delta_dipole = 38,
    field_delta_polarizability = 1000,
)

Run the get_absorption method to generate the absorption spectrum.
Warning

This is the cpu (or gpu)-intensive part of the process. Only run this method when you are ready to generate the absorption spectrum.
spectrum = model.get_absorption()
This will return an AbsorptionSpectrum instance to the spectrum variable. Details on the AbsorptionSpectrum class can be found in the Absorption Spectrum Docs.

Accessing spectrum data:
x, y = spectrum.energies, spectrum.intensities print(x) print(y)
Saving spectrum data:
spectrum.save_data("path/to/output/file.csv") spectrum.save_plot("path/to/output/plot.png")

Full Class

class quantumspectra_2024.models.StarkModel(*, start_energy: float = 0.0, end_energy: float = 20000.0, num_points: int = 2001, neutral_submodel: AbsorptionModel, positive_field_strength: float, positive_field_sum_percent: float = 0.5, field_delta_dipole: float, field_delta_polarizability: float)[source]

A general model for Stark absorption spectrum.

Parameters:

start_energyfloat: absorption spectrum’s starting energy (wavenumbers).
end_energyfloat: absorption spectrum’s ending energy (wavenumbers).
num_pointsint: absorption spectrum’s number of points (unitless).
neutral_submodelModel: parameterized neutral submodel to use in Stark effect calculation.
positive_field_strengthfloat: positive strength of the electric field.
positive_field_sum_percentfloat: fraction of positive field strength to use in spectrum (decimal). negative field strength is 1 - this value.
field_delta_dipolefloat: change in dipole moment due to electric field.
field_delta_polarizabilityfloat: change in polarizability due to electric field.

Methods

`get_absorption`()	Compute the absorption spectrum for the model.
`get_charged_submodel`(field_strength_scalar)	Returns a charged submodel with the Stark effect applied.
`get_neutral_submodel`()	Returns the netural submodel with the Stark effect applied.

get_absorption() → AbsorptionSpectrum[source]

Compute the absorption spectrum for the model.

First computes absorption spectrum for the neutral submodel, and then for the charged submodels. Two charged submodels are computed, one with positive field strength and one with negative field strength.

A half-sum is computed between the two charged submodels, with each submodel’s intensities scaled by positive_field_sum_percent and 1 - positive_field_sum_percent, respectively.

Then, the neutral intensities are subtracted from the charged half-sum to get the electroabsorption spectrum.

Returns:

AbsorptionSpectrum: the model’s parameterized absorption spectrum.

get_neutral_submodel() → AbsorptionModel[source]

Returns the netural submodel with the Stark effect applied.

This method replaces the neutral submodel’s point values with the Stark model’s point values. No other changes are made to the neutral submodel.

Returns:

Model: the neutral submodel for Stark calculations.

get_charged_submodel(field_strength_scalar: float) → AbsorptionModel[source]

Returns a charged submodel with the Stark effect applied.

This method starts with the neutral submodel from get_neutral_submodel and applies the Stark effect. The Stark effect is applied through the Model’s apply_electric_field method. Field strength is multiplied by field_strength_scalar, and all other values are inputted into the method exactly.

Parameters:

field_strength_scalarfloat: scalar to multiply the field strength by.

Returns:

Model: the charged submodel for Stark calculations.
